Hexagon fit bolt with long thread 8.8 M10x060

Are you a business customer and interested in regular purchases? Register now!

Select a variant

In stock total 83 pcs

31.54 Kč / pcs

with VAT

To add an item to the cart, you need to

SKU:01400.14.00.100.060

DIN:609

Material:8.8

Surface:Plain

Weight:55 g

Diameter (mm):10

Length (mm):60

Diameter (inch):0.3937

Length (inch):2.3622

Thread type:Metric

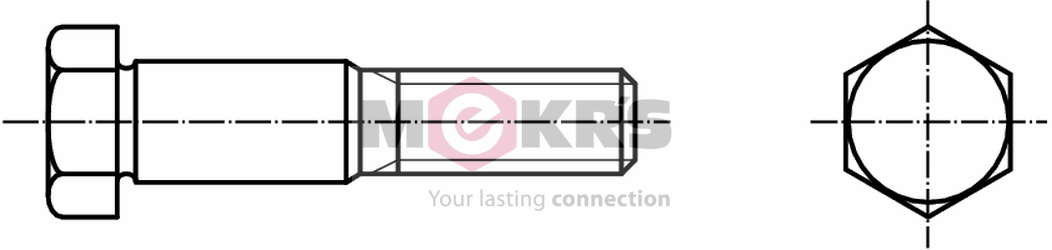

Rozměry

Průměr (d)	Rozměr klíče (s)	Výška hlavy (k)	Síla těla (ds)	Závit (b pro L ≤ 50)	Závit (b pro 50 < L ≤ 150)	Závit (b pro L > 150)
M8	13 mm	5,3 mm	9 mm	14,5 mm	16,5 mm	21,5 mm
M10	16 / 17 mm	6,4 mm	11 mm	17,5 mm	19,5 mm	24,5 mm
M12	18 / 19 mm	7,5 mm	13 mm	20,5 mm	22,5 mm	27,5 mm
M14	21 / 22 mm	8,8 mm	15 mm	22 mm	24 mm	29 mm
M16	24 mm	10 mm	17 mm	25 mm	27 mm	32 mm
M18	27 mm	11,5 mm	19 mm	27,5 mm	29,5 mm	34,5 mm
M20	30 mm	12,5 mm	21 mm	28,5 mm	30,5 mm	35,5 mm
M22	32 / 34 mm	14 mm	25 mm	32,5 mm	34,5 mm	39,5 mm
M24	36 mm	15 mm	25 mm	x	36,5 mm	41,5 mm
M27	40 mm	17 mm	28 mm	x	39,5 mm	44,5 mm
M30	46 mm	19 mm	32 mm	x	43 mm	48 mm
M36	55 mm	22 mm	38 mm	x	49 mm	54 mm
M42	65 mm	26 mm	44 mm	x	56 mm	61 mm
